Cobra Ultimate Carbon Shield Firefighting Hood

30400-00-192098

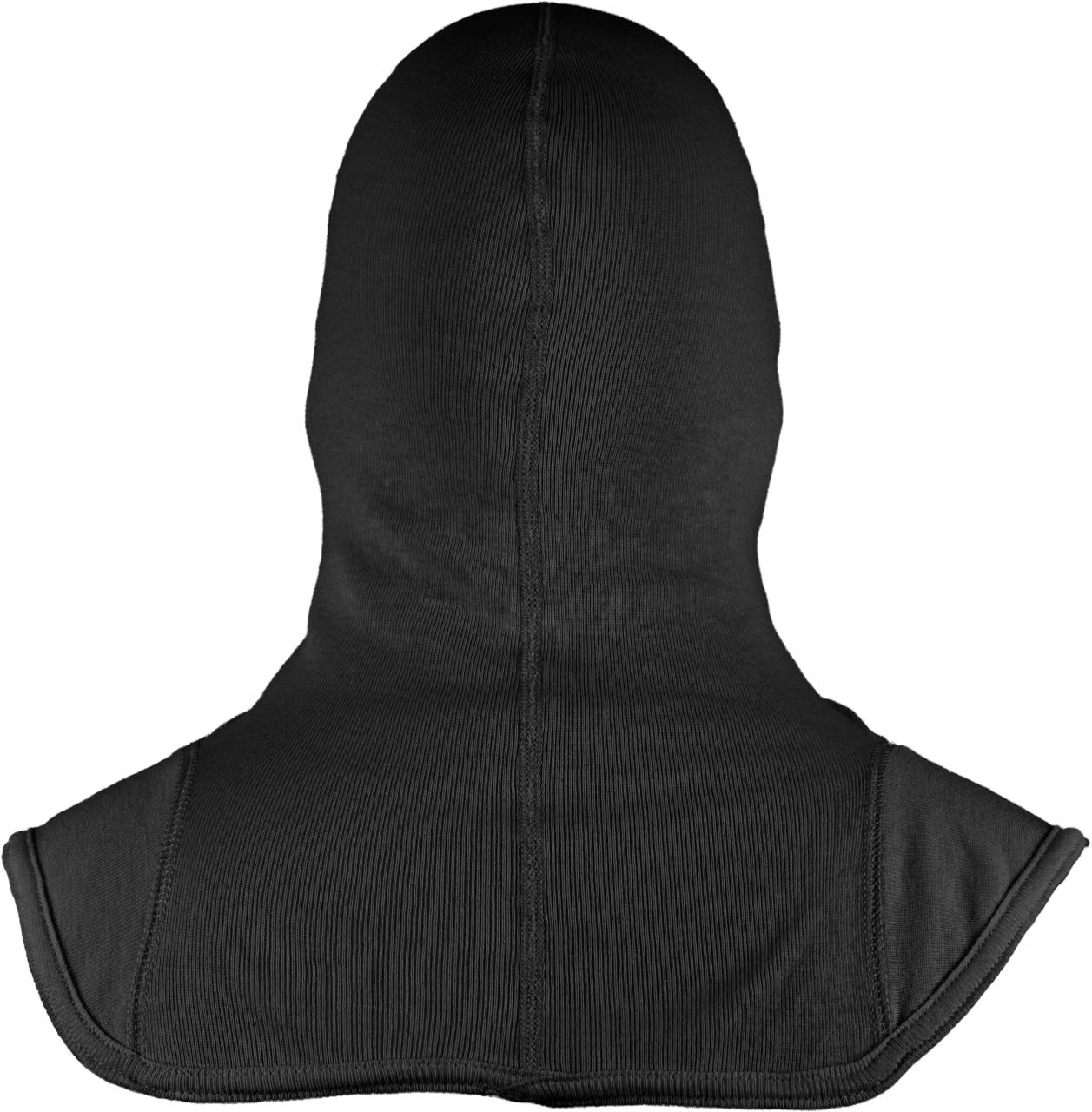

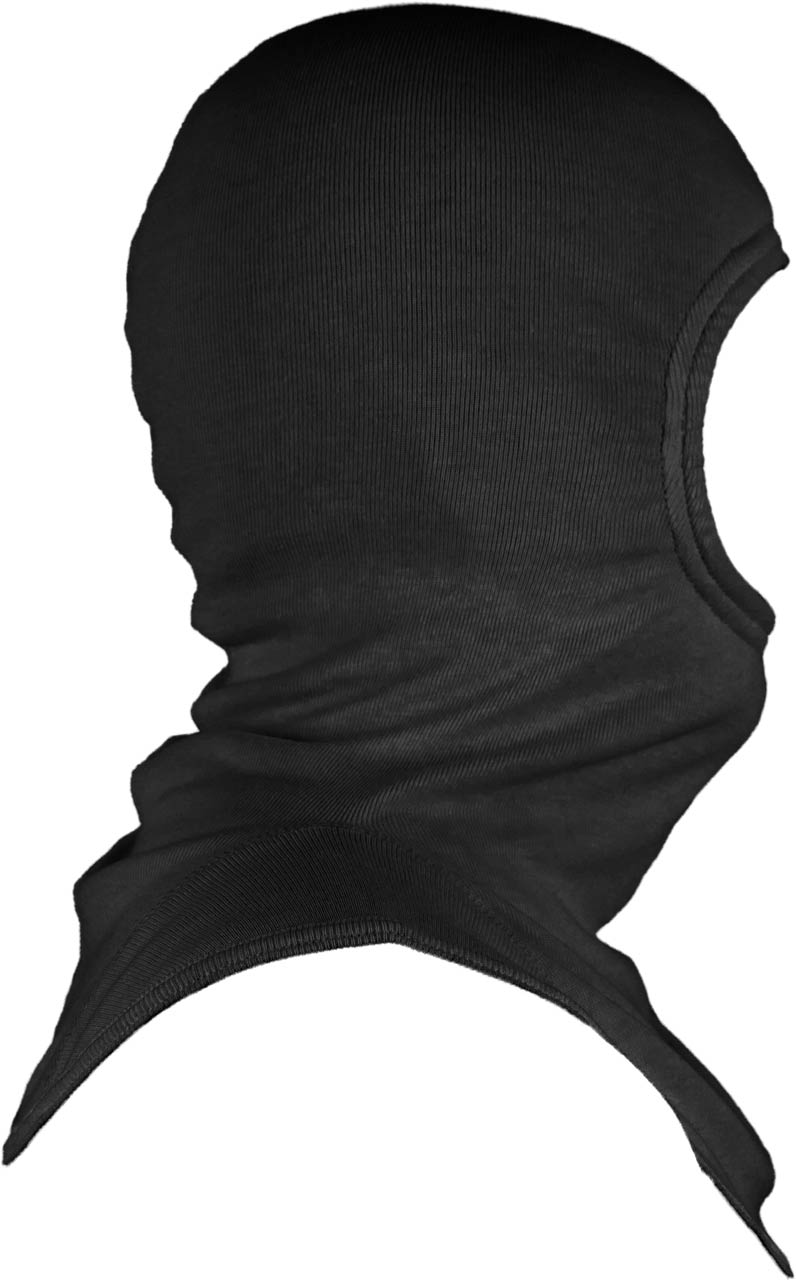

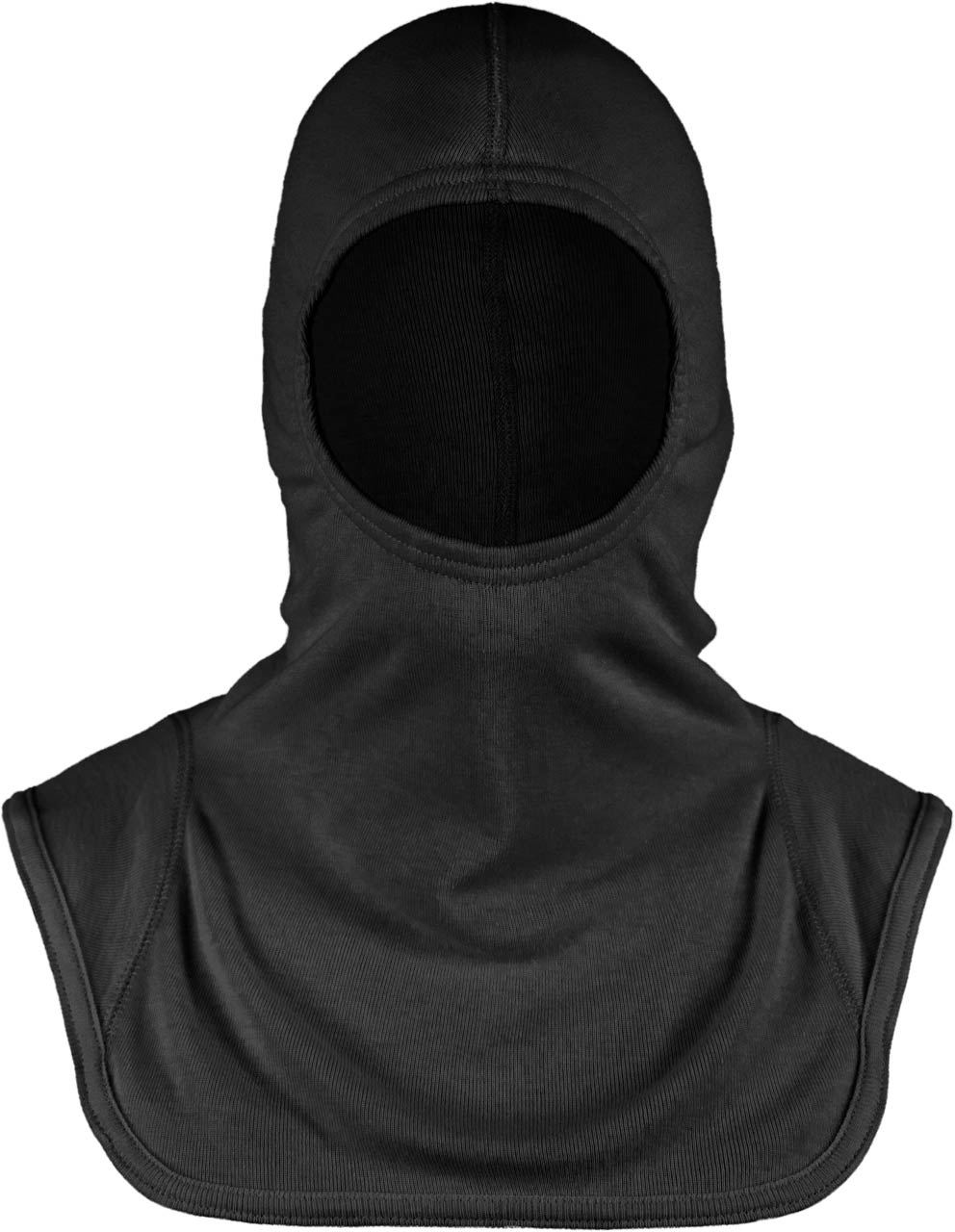

Cobra Ultimate hoods are double ply and feature extra-long length that covers head, chest, shoulders and shoulder blades for enhanced protection. Flat-stitched seams eliminate bunching and won’t dig into skin. A half inch wide elastic face opening stretches to full 16" to ensure a snug fit around most SCBA masks. UL Classified to NFPA 1971 Standard on Protective Ensembles for Structural Fire Fighting and Proximity Fire Fighting – Current Edition.

Fabric Description:

Considered the ultimate high-tech fabric for thermal protection and comfort. The Carbon Shield fabric simply won’t burn in air. Additionally, this fabric has excellent moisture regain and wicks moisture away from the skin to the outer shell enabling it to evaporate at a rapid rate.

Sizing:

One size fits most

Options:

Thread
Cobra hoods are available sewn with either color-coordinated (matching) or color-contrasting 100% Nomex® thread.
Direct Embroidery
100% Nomex® thread embroidered on bib. Minimum order 25 each.
Ink Heat Transfers
High resolution multi-color transfers. Minimum order 100 each.

30400-00-192098 EU Declaration of Conformity - 2020
30400-00-192098 EU Certificate - 2020
30400-00-192098 UKCA Certificate - 2022
UKCA Quality System Certificate - 2022

Features

Test Results

Fabric Performance ValuesRequirements NFPA 1971
2018 Edition
PGI Test Results
Thermal Protective Performance (TPP)
  • As Received
20.0 (min)31.2
  • After 5 Washings
20.0 (min)33.1
Hood Material Burst Strength 225 N411 N
Flame Resistance Test

After Flame (Wales x Courses)

  • As Received
2.0 sec0.0 sec x 0.0 sec
  • After 5 Washings
2.0 sec0.0 sec x 0.0 sec

Char Length (Wales x Courses)

  • As Received
100 mm0 mm x 0 mm
  • After 5 Washings
100 mm0 mm x 0 mm
Cleaning Shrinkage Resistance Test

Hood Measurement

  • After 5 Washings
-5%-1% to 0.3%
Heat & Thermal Shrinkage Resistance Test

Hood Measurement

  • As Received
-10%-1.4% to 0.0%
  • After 5 Washings
-10%0.0%
Limited Oxygen Index (LOI)Not Required43
Seam Breaking Strength Test 181 N630 N
Melt or Drip When Exposed to FlameNo Melting or DrippingNONE
Arc Thermal Performance Value (ATPV)32 cal/cm2
NFPA 70E Hazard Risk Category (HRC)HRC 3
